This section refers to settings that are specific to DDES3 files.
DDES3 Import
Dimensions
Settings

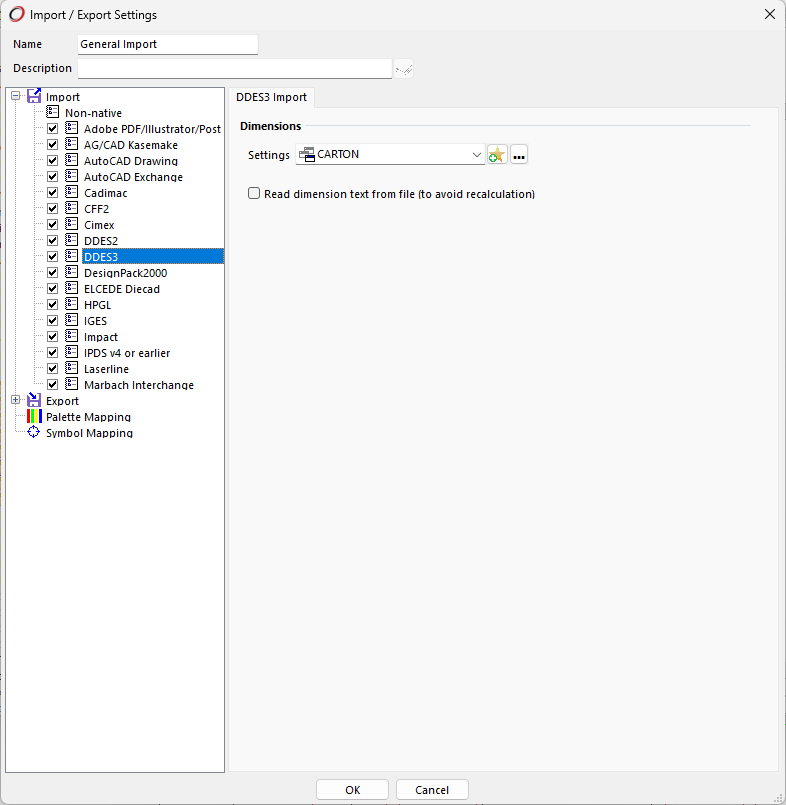

From the pulldown list select the dimension settings that should be used for all dimension entities that are imported from the DDES3 file. The edit button can be used to view the dimension settings details.
Read dimension text from file (to avoid recalculation)
When importing drawings using the DDES3 file format, dimension labels are normally generated based on their calculated size. However, to improve compatibility with other CAD systems, and allow for the preservation of any customer overriden dimension label text, it's possible to enable this option.
By default, this option is OFF for new and existing MTS on upgrade, to preserve historic behaviour.
Feature Change History
The following changes have been made to this feature.
| History of Change | Version |
|---|---|
| New setting 'Read dimension text from file (to avoid recalculation)' introduced | 2023 |
